Galletto 4 v54 won’t start after installation on Windows XP(Solved)

Something you need to pay attention to if you fail to run Fgtech Galletto 4 v54 for use after installation.
First,
do a fresh install of windows XP

Second,
remove the old fgtech from system totally
That is, you need to remove all previous installs system files of fg

Third,

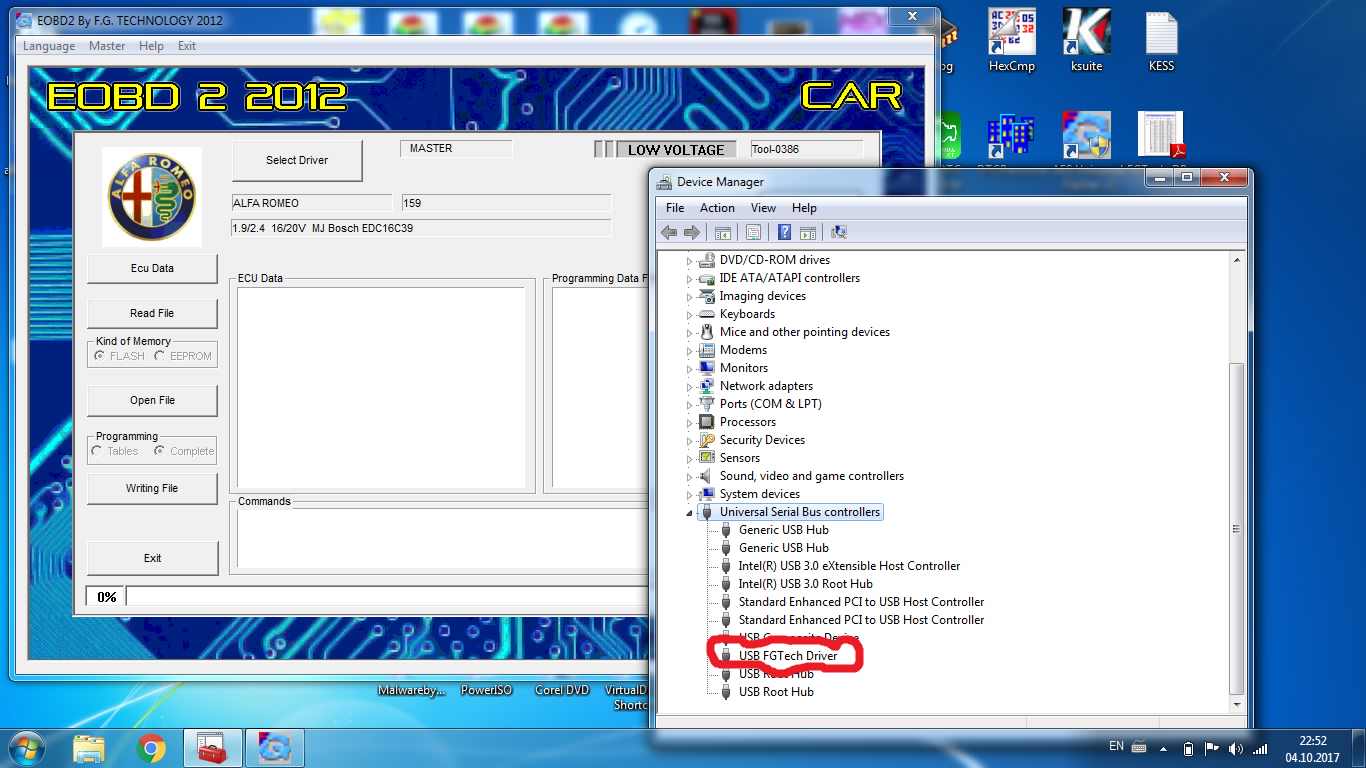

check your fgtech drive, check if all is well, there's driver for 32bit and 64bit. (if you uninstall all previous versions). Use the USB fix that comes on the cd.
If Fgtech v54 not open in OBD2, re
-install again without deinstalar the v54. and try to open the Obd2 again.

Fourth,
check ftd2xx.dll file. If this file was read only and you have to change this unmarking read only in location - widows/system32/ftd2xx.dll.

Now is working !!!!!!!!

Galletto v54 in xp....run install, plug in usb........point device driver to 'new driver' that you just installed in FG folder. re run install. Should work.
Description not 100% precise....but it Worked for me.

I installed this program on three different computers with xp sp3 and one all goes well, the other needs to be reinstalled every time you want other functions and unresponsive executable not understand these discrepancies.

The final tip: Video: How to install Fgtech Galletto 4 v54 Windows XP

2017年4月25日星期二

Why FGtech China clone not fgtech euro clone?

I have FGtech Galletto China clone and also fgtech euro clone, some ECU tunners tend to consider fgtech euro clone is high quality and work fine, but China clone need luck. Personally I don’t agree, it’s something of prejudice, to me the FGtech Galletto China clone can work flawlessly, it can do what I paid.

Test reports speak louder than words, I’d like to share their own PCB and my test report in the following parts, hope it helps.

Part 1: Fgtech Galletto china Clone PCB & test report
To some users they think highly of fgtech euro clone because fgtech euro clone is gold immersions and they like its component position.

To me and some of others like me, I think color of relays is the most important in this case, but I think some of users didn’t saw good quality chinagalletto. gtech Galletto china clone is no gold immersions but PCB and soldering quality is really very good, Fgtech galletto china clone have the same component of EU clone.
Also I have 2 galletto. One with yellow relays and second one with black. Both of them works very good.
I test FGtech galletto V54 on Audi 2009, Tiguan 2009, Passat 2009 and Golf 6 2009. It supports not all ecus edc17, Sure edc17cp04 and edc17cp14 year 2009 can read-write in obd. But edc17cp20, edc17cp44,etc, etc same year, have tricore protected active, and if you write in obd, ecu bloqued. I think TProt on VAG are present from 05/2009 but is very random this option is most present on engine with low power and is not compeer to years or ecu type.The best way to know if tp is active is always bootmode and read tag on file.

Here my test reports list:
Via OBD
ALFA ROMEO
· edc15c7
· ME 7.3.1
· edc16c39
· edc16c39 read time 40 MINUT!
· id Alfa 147 immo off (k line /boot mode)

BMW
· edc16c31 obd
· BMW X5 2007 3.0TDI
· EDC16 OBD
· BMW 525 (E39)
· BMW 320D E46
· bmw e90

FIAT
· Grande Punto read 1_3 MJT 75 hp

MERCEDES
· EDC15C5
· edc5c2
· delphi CRD2

OPEL
· EDC16c9
· Opel Corsa-D CAN

PSA
· edc15c7 boot mode (ID problems)
· EDC 16C34
· EDC16c3 K line
· edc16c34

RENAULT
· Renault Delphi 2007 k-line

VAG
· edc15v
· EDC15-P
· edc15
· Golf Plus 2006 2.0TDI
· EDC16U34
· A4 2.0 tdi 2008
· Skoda octavia vrs 2005
· EDC15P K lINE
· VW crafter READ
· VW Golf5 1.9TDI
· Audi A6 V8 4.2l Petrol (over OBD fuse for dash fuse 11 or 15 , but it worked after pulling the fuse for dash and it went 100%)
· med9.1
· edc17cp14
· EDC17
· But edc17cp20, edc17cp44, etc, etc same year, have tricore protected active, and if you write in obd, ecu bloqued.

Via BDM
· BMW E70 3.0D EDC16
· bmw. edc16c35 from
· (Opel) EDC16c9
· iveco edc16 BDM

Via BOOT TRICORE
· Audi A6

This is €56.99 folks! 10 times cheaper than the cost of Euro clone. Shipping took 10 working days.
I'm not affiliated with this company, just a customer.

Part 2: fgtech Galletto Euro clone PCB & test report

Here fgtech Galletto Euro clone PCB is Gold immersion and I like the component position


I could change a lot of parts but will not be the same.
This is my fg v53 test, when I rebuild HW I don’t change U11-U15 because seller did not have them...now is changed
after SW upgrade I used it on many situation : k line (obd), can(obd), boot tricore on each ecu med17, mev17, mevd17, edc17c-cp-cv, boot st,bdm, jtag...always perfect without error.

Conclusion:
Fgtech China clone price less than $100 and works great, it is worth the money.
Fgtech China clone price almost $1000 with gold immersion PCB and allows user to rebuild, and works great .

Blindly deny Fgtech China clone is something kind of pride & price. Choose the one which meet your needs and budget is the most important.

2017年3月17日星期五

FGTECH Galletto 4 V54 read write VAG BMW ECU what tested OK?

Which VAG BMW ECU types are tested OK to read write by FGTECH Galletto 4V54? Here is a list to show you all tested OK results!

FGTECH V54 read write BMW EDC15 EDC16 EDC17 success:
BMW 330d EDC15C4 read ok/write ok via OBD
BMW e46 2.0D EDC16c31- ok
BMW E90 2.0D EDC16c35- ok
BMW E70 3.0D EDC16 (BDM)
BMW 3/5/7 series
EDC16C31/35 OBD r/w ok
EDC17 in boot mode ok
BMW E87 116D 2.0 EDC17C06 boot mode r/w ok
BMW E83 3.0d ODB r/w ok
BMW X6 3.0D 2012 and 2013 (306 and 245hp) BOSCH EDC17CP45 read/write BOOT ok
BMW E90 EDC17CP reading ok, boot mode ok
EDC16 OBD
EDC16C31 OBD
BMW X5 2007 3.0TDI
BMW 525 (E39)
BMW 320D E46
BMW E90

FGTECH V54 read write VAG EDC16 EDC17 PCR2.1 MED9.1 success:
EDC16U34 (VAG) Read/Write ok (OBD)
EDC16U1 (VAG) Read/Write ok (OBD)
MED9.1 (VAG) Read/Write ok (ODB)
Trionic8 (SAAB 9-3) READ/WRITE OK (OBD)
EDC16P (VAG) Read/Write ok (OBD)
EDC15V (VAG) Read/Write ok (OBD)
EDC17CP14 03L906022G Read/Write ok (OBD and boot mode)
AUDI ME 7.1.1 3.0 v6 read ok
EDC16 OBD r/w generally ok
EDC17 in boot mode ok
MED17.5.1 Boot mode r/w ok
AUDI Q7 3.0tdi BDM ok
VAG EDC16CP34 OBD read/write ok
VAG PCR2.1 read/write OBD ok, PCR2.1 unlock via boot mode ok
Get FGTECH Galletto 4 V54 only 56.99 here!

2016年12月14日星期三

How Fgtech Galletto 4 V54 read write flash ECU EDC16c34 via OBD?

This blog will offer you a guide for how use Fgtech Galletto 4 V54 to read and write ECU EDC16c34 via OBD. (Not on bench) Check below steps!

Engine: 1.6 HDi Berlingo
ECU Type: EDC16C43
ECU BOSCH number: 0281012619, year 07-12-05, 9663943980
Action: Fgtech read write EDC16C43 via OBD
How Fgtech Galletto 4 read EDC16c34 via OBD?
Step1. Connect Fgtech Galletto 4 V54 Master directly to car OBD port then connect it to laptop via USB cable. (When read ECU you don't need 12v external power supply)
Turn on the key to position 1 but don't start engine.
Step2. Open Fgtech V54 software, first click “Select Driver” to choose correct driver for your car / ECU.
Next check “ECU Data” to see if connection is OK.
Step3. Click “Read file”, enter name of the file, and reading start.

Wait until reading is 100% complete. Turn the dashboard off.
How FgtechGalletto 4 write EDC16c34 via OBD?
NOTE:
1.     Make sure your car battery is ok. You must have over 12v steady volts to write. You can connect your car battery to external 12v charger.
2.     You can damage your ECU if voltage drops under 12v. If writing process is disrupted you can recover your ECU only by BDM restore.
Click “Write file” to start ECU writing.
When the writing complete, turn off the dashboard and wait 3 minutes.
Then turn on dashboard and wait 3 minutes. After that you can turn on the engine.

2016年4月18日星期一

(Solved) Audi A4 1.8T 2007 Car not start after reading

Car model and year:
Audi A4 1.8T 2007 163hp
Tool to use:
I read this with Fgtech Galletto v54 with OBD-
1.8 Turbo 150/180CV ME7.5.1 29f400BB..galletto say change driver
1.8/2.0 Turbo 150/180CV ME7.5.5 29f800BB....read success...100% Ignition off...
Symptoms:
Will write the remap....he wants to drive off...car not start
VCDS go ECU an read fault code say "programming process not finished"
I have just read, not write...
100% working solution:
The car is running
What I did as follows:
-> I remove fuses from Dash and Radio\Navi
-> use a good bosch powersupply (14V)
-> delet all fault code VCDS
-> write the same file was read before with Fgtech Galletto
-> note all prompts from galletto about ingnition on/off
-> car start....running
-> delet all fault code VCDS

2015年10月13日星期二

Best Quality FGTech V54 Galletto 4 Master

Which EDC17 Reader works well for a good price?
BDM100, FGTECH 54, MPPS v16, kess v2.06 or any other tools/ solution is optional?
Let’s hear from some experienced ECU tunners.
  • For EDC16 iam using BDM100 from china.
  • I USE FGTECH 54 AND IS OK. no problem.
  • I read one EDC17 in Audi A4 with MPPS v16.
  • Another EDC17 I read in boot mode with galletto v54 good china clone... Do job perfectly.
When you have problem, just try this way: uninstall all fgtech software. Install basic version. Connect tool and give drivers. Unplug tool. Remove basic. Install Win7 version. Plug tool + drivers. Done.
  • I use the kess v2.06 reworked pcb and fw updated, like 08 what is available...is great tool, recently KESS FM V4.036 available, haven’t test it, but I think it will do. As told by eobd2.fr customer service, the older fw kess v2 is available to update firmware by returning back the main unit to them and charge $89, but the QC number has to be ended with 015.
  • I use byteshooter does most ecus obd2, inclusively edc17 first models until 2009, first generation. For late edc17 byteshooter reads very good on table, only resistor adding is needed. If you want good tool go Byteshoter. Never had issues with it. Galetto v54 reworked pcb works good too.
  • CMD CAN Flasher dont can read write all edc17 by obd, only a few.

2015年7月29日星期三

Flash VAG Bosch EDC16U34 ECU with FGTech Galletto 4

FGTech V54 Galletto 4 is the fastest and most secure chip tuning tool, features Multi-language, User-friendly and No Activation Needed. FGTech V54 supports wide range of vehicles, such as truck, motorcycles, cars and marine.

Supported OS: A laptop running Win XP / Vista / Win7 (without any anti-virus software and internet/network connection)

Guide for you to flash VAG Bosch EDC16U34 ECU:

1. Install the V54 FGTech Galletto 4 Master Software;
Video for Installation Reference: https://www.youtube.com/watch?v=FH_V39N3FlM

2. Connect v54 fgtech galletto 4 master with PC/Laptop, setup boot and BDM.

3. Find out the BDM pads showed at following picture;

4. Carefully align with the BDM Port ECU programming spring adapter/probe drop and secure frame.

Kindly Note: Confirm all is connected correctly;

5. Run FGTech V54 software, accept the system notice.
Kindly Note:
Make sure you have 12V+ feeding FGTECH 4 master main device and the intermediate adapter.

6. Turn intermediate adapter to ON, the read LED indicator will flash;

7. Click the Option list as the order: “Select Driver” >> “BMD-Jtag” >> “Connect”;

8. If communication between FGTech Galletto 4-Master V54 and PC/Laptop is well built, green bar will start loading and finally display ECU information.

9. Ready to read and write ECU. Choose “Read EEPROM” to read EEPROM via system prompts, and then select Write Eeprom”; once ok, turn the switch off.

10. Exit FGTech V54 software program.
